COMPLEO SOLO N+

Smart charging - get more out of your solar power

The Compleo Solo N+ wallbox is equipped to maximise the self-consumption of your PV system by using the surplus electricity. Plus, you can charge your car at the same time.

Fast and safe:

  • Max. 22 kW charging power (AC)
  • All safety & protection components integrated in the case
  • Compliant with calibration laws
  • Equipped with RFID & NFC readers
  • ISO 15118 ready
Solo-N-plus_Titelbild_800h
neoom_round_c
Compliant with calibration laws
neoom_round_c
RFID & NFC Reader
neoom_round_c
Automatic phase switching
neoom_round_c
Ready for Plug & Charge according to ISO 15118
neoom_round_c

Overvoltage protection type

1 & 2 & 3

neoom_round_c
All-in-one-Design
Compleo-Pole-N+-Single_Buchse_800h

Smart

The Compleo Solo N+ is so smart. Highly intelligent, in fact.

  • Maximisation of self-consumption through automatic phase switching
  • Compliant with calibration laws
  • Equipped with RFID & NFC readers
  • Communication interfaces LAN, mobile radio 4G
  • Can be integrated with any IT backend via communication through OCPP 1.6 JSON
  • Energy and load management via communication to third-party devices through Modbus TCP/IP
  • Hardware prepared for Plug & Charge according to ISO15118

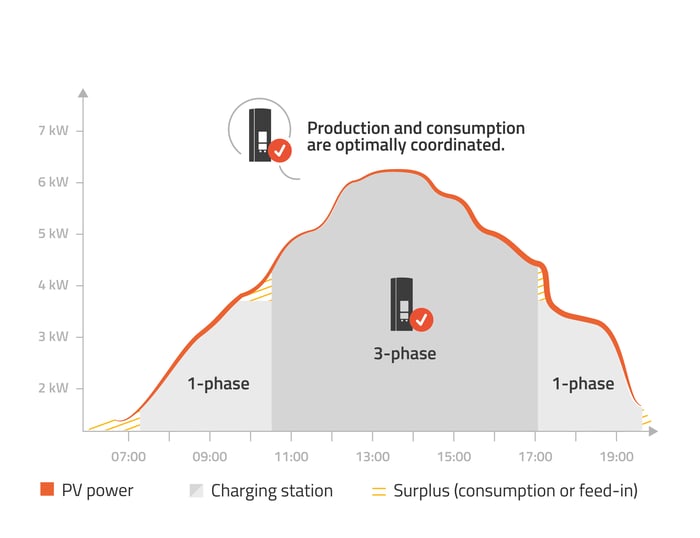

Smart due to automatic phase switching

Automatic phase switching allows you to maximise your own consumption by making optimal use of surplus energy from your PV system.

This means that the charging station automatically switches to three-phase charging - or back to single-phase charging - when a predefined threshold value is reached. This is how it works in practice: In the morning, when there is little surplus, charging starts in single phase. If there is enough surplus power during the day, it switches to three-phase charging, in case your EV can charge three-phase. When less surplus electricity is produced in the afternoon, single-phase charging takes place. This prevents unwanted charging interruptions, for example, if your PV system temporarily produces less electricity than is required for three-phase charging.

3-phasen_Ladestation-Solo-N-plus_EN
neoom GREEN

GREEN

Get the ePremium for your EV!

Apply for the GHG quota for your EV & collect an ePremium! It's easy with just a few clicks in GREEN, a skill of the neoom APP. Besides, you can also do good by investing in high-quality climate protection projects of the neoom Carbon Portfolio.

Check out GREEN

Safe

The Compleo SOLO N+ offers the utmost safety due to its all-in-one design.

This is because ALL protective components are integrated in one housing:

  • Overvoltage protection type 1 & 2 & 3 according to DIN EN 61643-11
  • Type A residual current device
  • DC residual current detection 6 mA
  • Resettable residual current device (RCD) with self-test function

Compleo-Pole-N+-Duo_Kabel_800h

Technical Data

produkte_solo_n+_buchse

SOLO N+ Socket

Maximum charging power
22 kW (only 3 phases)
Charging points
1
Automatic 1/3 phase switching
Available as standard (functionality only available with energy management via neoom CONNECT)
Authorisation
Free charging, smartphone app, RFID card, QR code
Communication
LAN, mobile radio 4G (OCPP 1.6 JSON, Modbus TCP/IP)
Fuse protection
RCD type A & DC fault current detection 6 mA
Overvoltage protection
Type 1+2+3 according to DIN EN 61643-11
Energy meter (German calibration law)
MID-compliant smart meter with memory and display module (SAM®) for each charging point
Mounting type
Wall or pedestal mounting
Compatible pedestals
Compleo Pole N+ Single and Compleo Pole N+ Duo
Dimensions (H x W x D)
Charging station: 660 x 250 x 150 mm / Pedestal: 1565 x 390 x 200 mm
Operating temperature
-25 °C to + 40 °C
Protection class
IP54 for indoor and outdoor use
products_solo_n+_cabel

SOLO N+ Cabel

Maximum charging power
11 kW (only 3 phases)
Charging points
1
Automatic 1/3 phase switching
Available as standard (functionality only available with energy management via neoom CONNECT)
Authorisation
Free charging, smartphone app, RFID card, QR code
Communication
LAN, mobile radio 4G (OCPP 1.6 JSON, Modbus TCP/IP)
Fuse protection
RCD type A & DC fault current detection 6 mA
Overvoltage protection
Type 1+2+3 according to DIN EN 61643-11
Energy meter (German calibration law)
MID-compliant smart meter with memory and display module (SAM®) for each charging point
Mounting type
Wall or pedestal mounting
Compatible pedestals
Compleo Pole N+ Single and Compleo Pole N+ Duo
Dimensions (H x W x D)
Charging station: 660 x 250 x 150 mm / Pedestal: 1565 x 390 x 200 mm
Operating temperature
-25 °C to + 40 °C
Protection class
IP54 for indoor and outdoor use

Downloads
SOLO N+
