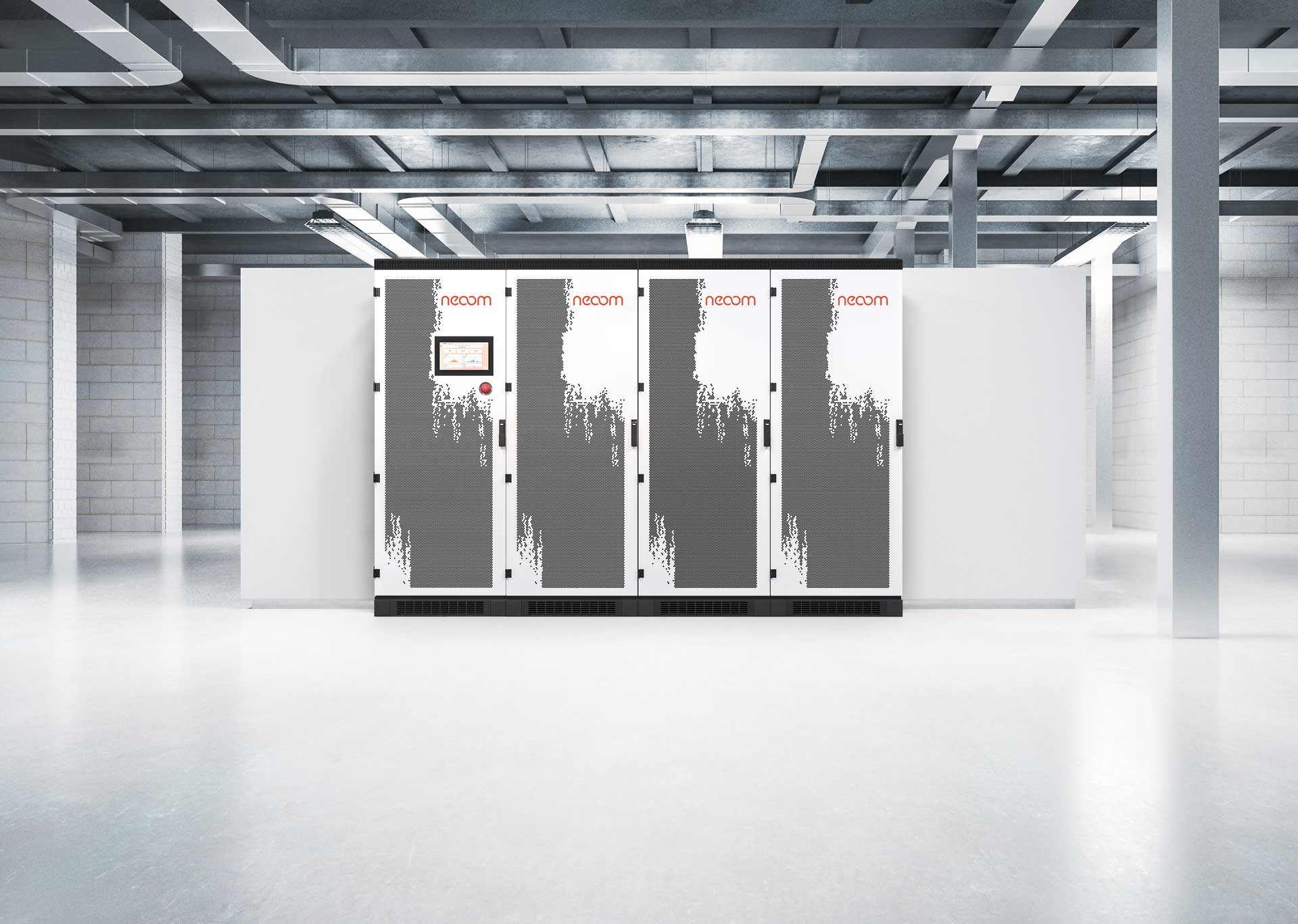

Der neoom BLOKK ist ein skalierbarer Großspeicher
neoom BLOKK kann bis in den Megawatt-Bereich eingesetzt werden
Durch dem modularen Aufbau ist der neoom BLOKK perfekt für Gewerbe und Industrie
neoom_round_c
For small businesses
& large plants
neoom_round_c
Operation
via touch panel
neoom_round_c
High quality
casing
neoom_round_c
Optimization of
own power
neoom_round_c
Blackout
security

Scalable



Possible applications
up to the megawatt range

Thanks to its modular design, the BLOKK can be used in smaller commercial operations as well as in large-scale plants and in industry up to the megawatt range. This includes the optimization of self-generated electricity and connected loads, peak currents and the compensation of reactive power.

BLOKK is delivered preassembled, which reduces installation time to a minimum. The neoom BLOKK can be serviced and operated via the self-explanatory touch panel. The high-quality casing and internal electronics are manufactured by an Austrian control cabinet specialist.

Technical data

produkte_blokk-master

MASTER BLOKK

Nominal power
from 50kW to 3 MW
Rated voltage
3-phase, 400 V, 50/60 Hz
EMS control and software
Industrial PLC with energy management software NTUITY on board
Operation / Interfaces
Touch panel 13", web interface / TCP-IP, RS485
Warranty inverter
5 years (optionally 10 years)
Certificates
ÖVE / ÖNORM / VDE / IEC / EN / CE
produkte_blokk-batterieschrank

BATTERY BLOKK

System capacity
99,5 kWh up to 4 MWh
Cycles
5000 (90% DOD)
Warranty
10-year manufacturer's time value replacement guarantee on battery modules
Certificates
TÜV / IEC62619 / CE

Downloads
BLOKK
NTUITY macht Energiemanagement im Unternehmen leicht

Intuitive energy

management

NTUITY simplifies processes through networking, increases the safety of the local energy infrastructure and offers sustainable services based on renewable energies for maximum customer satisfaction.

More about NTUITY
