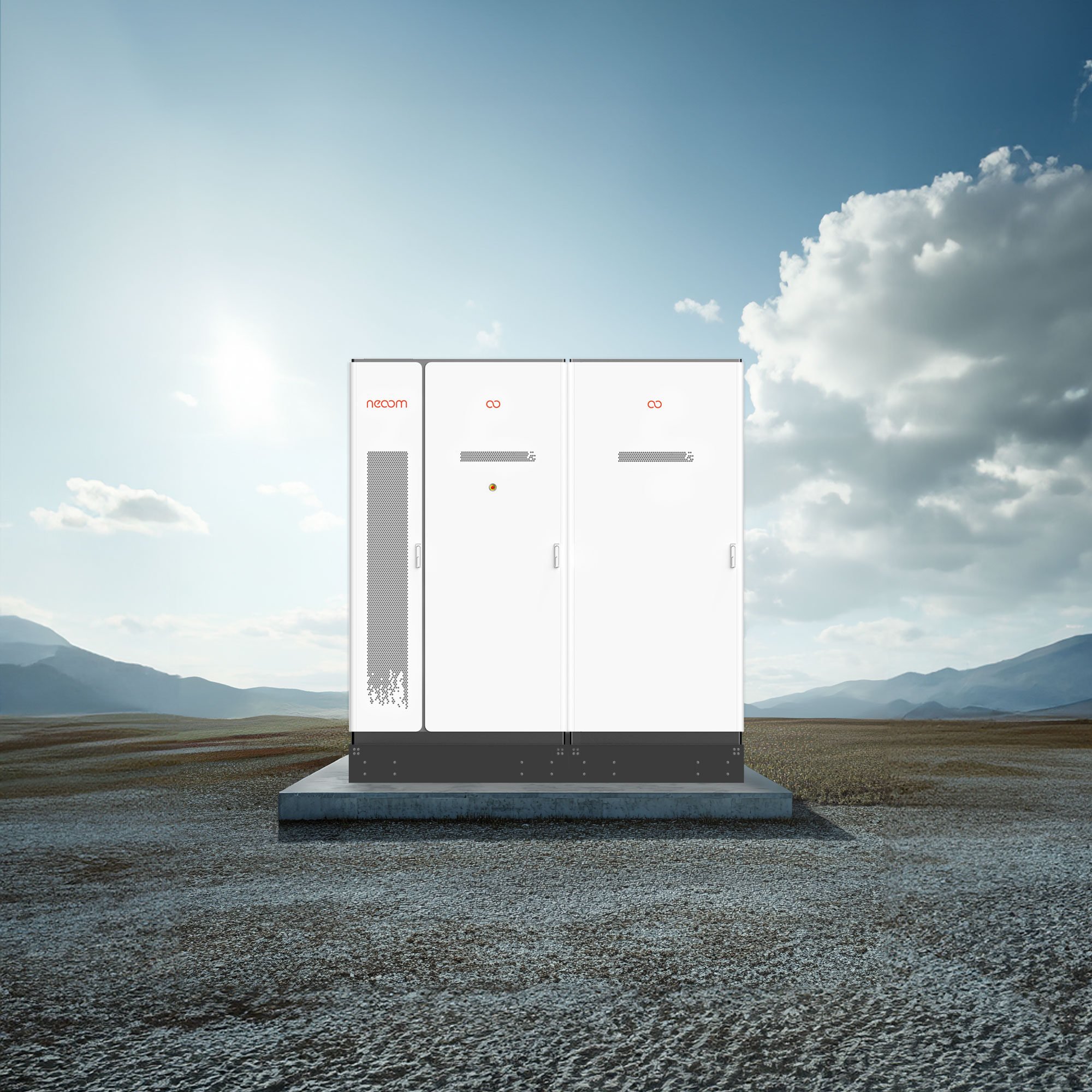

TERRA
The scalable outdoor storage unit
Minimize your energy costs with neoom TERRA, the most technologically advanced outdoor-capable battery storage system. The TERRA's modular concept enables quick and easy installation and commissioning, guaranteed by the pre-installed delivery. Easily expand your system to meet changing energy requirements. This makes the TERRA the ideal system for commercial and utility applications!
~ 750 kW
Power / unit
~ 5,882 kWh
Usable capacity / unit
Unlimited scalability
in capacity and performance
TERRA
Power storage for outdoor use
Opt for the future with neoom TERRA: a liquid-cooled all-in-one battery storage system that guarantees safety thanks to state-of-the-art technology. Not only can the storage system be flexibly expanded, but thanks to neoom CONNECT and GRIID, energy costs can also be reduced and efficiency maximized through the multi-use of operating functions. Invest now in an efficient and secure energy supply with TERRA.
For industrial applications, grid and energy suppliers
In-Front & Behind-the-meter applications
Fast & flexible installation
Suitable for outdoor use
TERRA
Nominal power per TERRA system
125 - 750 kW
Voltage, nominal / mains form
400 V AC (3L, N, PE) 50 Hz / TN-C-S
Gross capacity
258 to max. 6192 kWh
Fire protection system
Integrated 3-stage fire protection system
Net capacity
245 to max 5880 kWh
Installation / protection class
Outdoor / IP 55
Operating temperature
-30°C to max. 50°C
Installation height
≤ 4000m (power reduction >2000m)
Standards and certifications
IEC 62619, UL 9540A, UL 1973, UN 38.3, CE
Battery technology
Lithium iron phosphate (LFP) liquid-cooled
Grid authorisations*
VDE-AR-N 4100, VDE-AR-N 4110, VDE-AR-N 4120, TOR Erzeuger Typ A
System extension
Further cascading of individual TERRA systems to form a complete system with neoom CONNECT up to several megawatts of power possible.
Overall dimensions (WxDxH) per system
min. 2450 × 1350 × 2200 mm bis max. 27700 × 1350 × 2200 mm
Operating modes and functions
Self-consumption optimisation, peak shaving, energy and charging management, active power limitation, benefit from dynamic electricity prices with GRIID, balancing energy marketing, direct marketing, setpoint specification via external EMS
%20(1).jpg)
Smart networking with energy management
neoom CONNECT
neoom CONNECT connects device manufacturers, system integrators and site managers to simplify their processes, increase the security of the local energy infrastructure and enable sustainable services based on renewable energies.
