Die neoom BOOGIE Ladesäule bietet bis zu 2 x 22 kW Leistung
Die neoom BOOGIE spart Netzanschluss- und Betriebskosten
neoom_round_c
Simple operation
neoom_round_c
Common accounting systems
neoom_round_c
Dynamic load management
neoom_round_c
Modern design
neoom_round_c
IoE OS by NTUITY

timeless



Modern design
& smart functions

The neoom BOOGIE charging pole offers up to 2 x 22 kW power with type 2 socket or optional 4m spiral cable. Higher charging capacities with lower connected loads are possible through dynamic load management. This saves you grid connection and operating costs.

Technical data

produkte_boogie

BOOGIE

Maximum charging power
2 x 22 kW, 3-phase, 400 V
Version
Type 2 socket or 4 m spiral charging cable
Load management
Static or dynamic, master-slave function
Communication
RFID, Webinterface, OCPP
Energy meter
MID meter for billing per charging point
Interfaces
Ethernet RJ45 & Modbus RS485
Dimensions (H x W x D)
1624 mm x 570 mm x 170 mm
Protection class
IP44 for indoor and outdoor use
Ambient temperature
-20 °C to 55 °C
Network connection
GSM / LAN
Hedging
Direct current fault detection 6mA IEC 61851,
Contactor bonding detection,
Lightning and surge arrester,
Residual current circuit breaker type A integrated
Options
Labelling,
intelligent residual current circuit breaker
with reclosing function
individual QR code

Downloads
BOOGIE

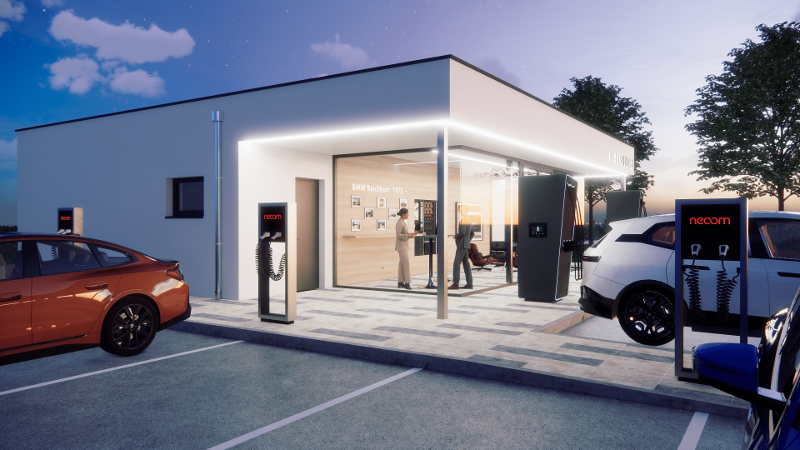

E-Lounge Nordost_komprimiert-1

Fit with neoom

for the electric future!

With the slogan "Mobility guaranteed", the long-standing family business BMW Reichhart in Mauthausen has made it its business to keep its customers mobile.

for reference

Which charging station

is the right one for you?
BOXX-Ladesäule_800h

neoom BOXX

The smart wallbox with dynamic load control

Learn more >

neoom-boogie_800h

neoom BOOGIE

The smart design
charging station

Learn more >

neoom-whizzy_800h

neoom WHIZZY

The compact wallbox with an innovative design

Learn more >
