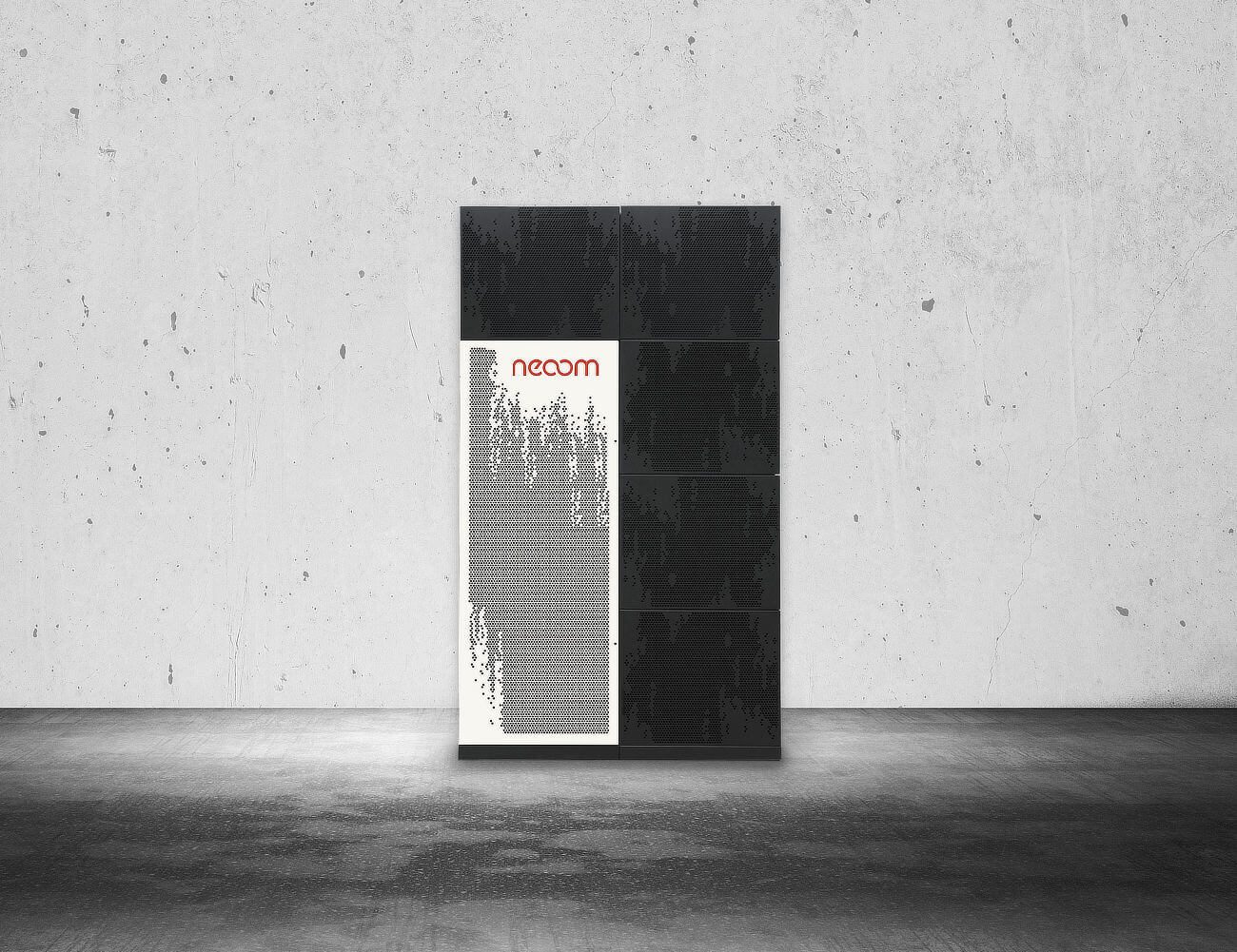

KJUUBE
The home storage unit
with corners and edges.
The KJUUBE hybrid home storage impresses with smooth functionality and unique design. Thus, all scenarios, from low to high power, from low to maximum storage capacity, can be realised. Everything is possible - free-standing, hanging on the wall, side by side or on top of each other.
Self-consumption optimisation
Blackout security
Flexibility
Independence
Cost reduction
MASTER KJUUBE
Nominal power
10 kW
Rated voltage
3-phase, 230/400V, 50Hz
Operation during power failure
Optional mains substitute operation via neoom® switch box (10-50kW)
PV connection / number of MPP
Yes / 2x
Operation / Interface
App, Display / LAN, Modbus TCP-IP
Smart Meter / Communication
Included / Modbus RTU RS485
Operation possible without PV
Yes
Modularity
1-5 Master KJUUBEs with 2-7 Battery KJUUBEs each
Certificates
ÖVE-ÖNORM / VDE / IEC / EN / CE
Dimensions (W x H x D)
561 mm x 1440 mm x 350 mm
BATTERY KJUUBE
Net capacity in kWh
8,6 / 10,8 / 12,8 / 15,1 / 16 / 17,3 / 19,2 / 22,4 / 25,6 / 28,8 / 32,0 / 35,1 / 38,3 / 41,6 / 44,7
Cycles
10.000 (90% DoD)
Warranty
10 years (Please note the separate warranty conditions)
Certificates
TÜV / IEC62619 / CE
Dimensions (W x H x D)
561 mm x 480 mm x 350 mm
Independence for all:
KJUUBE also inspires
private individuals
The declared goal of neoom is to enable the switch to a decentralised and, above all, renewable energy system through the perfect interaction of hardware and software. Kurt Mayr was looking for an investment in the future that would set an example for sustainability and found what he was looking for with the neoom KJUUBE hybrid storage unit.
