Die neoom BOXX hat eine Ladeleistung von bis zu 22kW
Mit der neoom BOXX spart man Netzanschluss- und Betriebskosten
neoom_round_c
Dynamic load-control
neoom_round_c
Individual design
neoom_round_c
Choice of socket or cable
neoom_round_c
Efficient charging
neoom_round_c
Integrated counter

dynamic



efficient
& fully integrated

With a charging power of up to 22 kW via the type 2 connection and the option of dynamic load control, the neoom BOXX is equipped for the future. Higher charging capacities with lower connected loads save on grid connection and operating costs. Already integrated meters and circuit breakers ensure smooth operation.

Technical data

neoom_boxx_wallbox

BOXX Cable

Maximum charging power
22 kW, 3-phase 400 V
Version
Type 2 socket or 4 m spiral charging cable
Load management
Static or dynamic
Communication
RFID, Webinterface, OCPP
Hedging
Direct current fault detection 6mA IEC 61851 contactor bonding detection, residual current circuit breaker type A integrated
Dimensions
H/W/D 625 mm x 400 mm x 160 mm
Protection class
IP44 for indoor and outdoor use
Temperature
-20 °C to 55 °C
Network connection
GSM / LAN
Options
Labelling, intelligent residual current circuit breaker with reclosing function, stand with foundation, individual QR code
produkte_boxx

BOXX Socket

Maximum charging power
22 kW, 3-phase 400 V
Version
Type 2 socket or 4 m spiral charging cable
Load management
Static or dynamic
Communication
RFID, Webinterface, OCPP
Hedging
Direct current fault detection 6mA IEC 61851 contactor bonding detection, residual current circuit breaker type A integrated
Dimensions
H/W/D 625 mm x 400 mm x 160 mm
Protection class
IP44 for indoor and outdoor use
Temperature
-20 °C to 55 °C
Network connection
GSM / LAN
Options
Labelling, intelligent residual current circuit breaker with reclosing function, stand with foundation, individual QR code

Downloads
BOXX

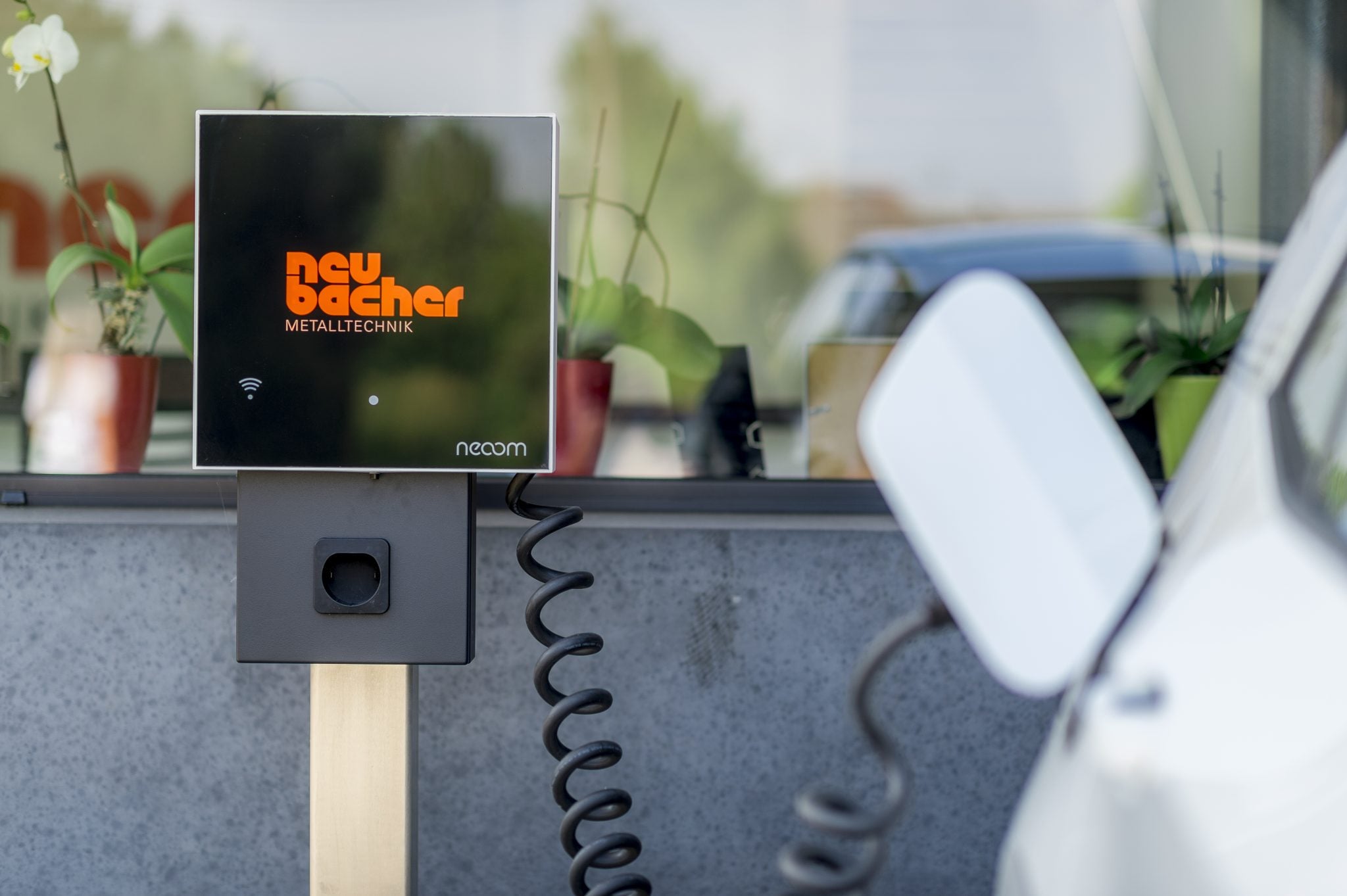

Das Unternehmen Neubacher setzt auf eine verbesserte CO2-Bilanz mit grünem Eigenstrom durch neoom Produkte

Electric fleet

with green own electricity

The Neubacher company has decided to change its vehicle fleet. The electric vehicles make an important contribution to improving the CO2 balance. By means of a 22 kW BOXX. charging station, the vehicle fleet is efficiently charged with its own electricity. Thanks to dynamic load control, the energy flows can be optimally and efficiently controlled.

for reference

Which charging station

is the right one for you?
BOXX-Ladesäule_800h

neoom BOXX

The smart wallbox with dynamic load control

Learn more >

neoom-boogie_800h

neoom BOOGIE

The smart design
charging station

Learn more >

neoom-whizzy_800h

neoom WHIZZY

The compact wallbox with an innovative design

Learn more >
